Loop Resistance Tester

According to the new preventive test regulations for power equipment, the resistance test of the conductive circuit of various switchgears is a necessary test item; the test current shall not be less than 100A, and the continuous current time shall not be less than 1 minute. In this regard, our company has designed and developed a new generation of loop resistance tester products, suitable for testing the primary contact resistance of high- and low-voltage switches, the DC resistance of high- and low-voltage cable lines, etc. The loop resistance tester has a 100A constant-current output, which can be used with a smaller section of the test line, reducing the labor intensity for field testers. The test data is displayed on a dot-matrix LCD with a backlight, suitable for various working environments.
Share your love

Functional characteristics

  • Constant current output, open circuit voltage up to 10v;
  • The instrument output current is big, the weight is light;
  • It has perfect protection circuit and high reliability
  • With test time setting function, meet the requirements of the provisions;
  • Built-in high-capacity Non-volatile random-access memory: Can Store 500 sets of test data;
  • Built-in USB controller: test data can be saved to USB disk and stored permanently in PC;
  • Built-in high-precision real-time clock function: Date and time calibration;
  • The instrument comes with a high-speed micro thermal printer that prints measurements and historical data.

Technical parameters

  • Output current 100A/50A
  • Open circuit voltage 10V
  • Measurement Time Auto, 15s, 30s, 45s, 60s optional
  • Measurement range 0ー19.99 m ω/99.99 m ω
  • Resolution 0.1 μω
  • Measurement accuracy ± (0.5% read + 2 words)
  • Dimensions 300 mm × 230 mm × 220 mm
  • The weight of the instrument is 7 kg

Conditions of use

  • Ambient temperature -10 °cー50 °C
  • Ambient humidity ≤85% Rh
  • AC220V ± 10%
  • Power frequency 50 ± 1 Hz

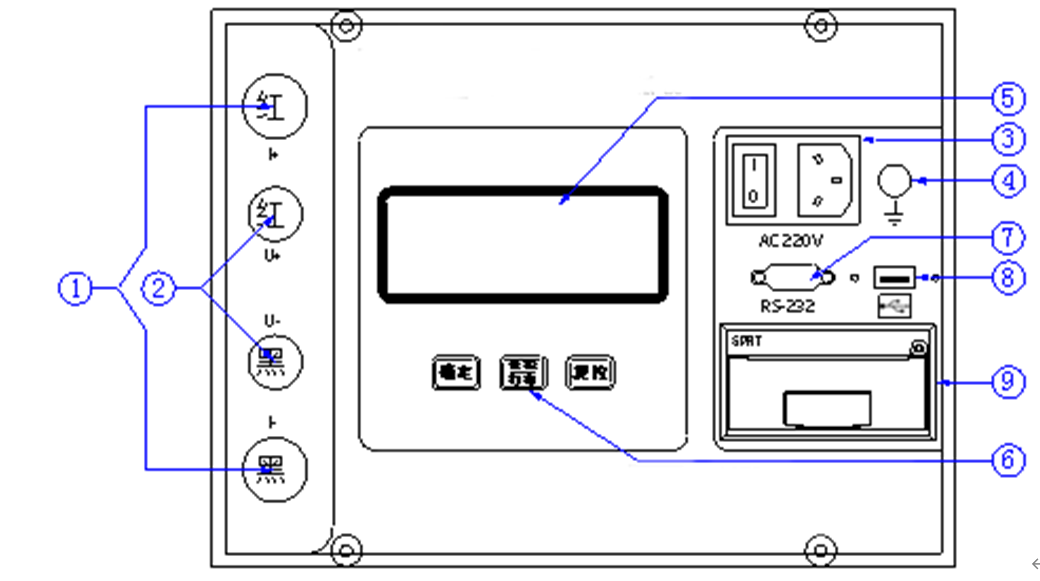

Introduction to the panel

Introduction to the panel

1. I+, I-: Current output terminals.
2. U+, U-: Voltage input terminals.
3. AC220V: The main power input port for the entire device, equipped with an AC socket, fuse compartment, and switch.
4. Grounding Terminal: Used for grounding the equipment chassis, serving as a protective ground.
5. LCD Screen: A large liquid crystal display that shows current and resistance values.
6. Keyboard: Confirm Key – After selecting an option, press this key to execute the corresponding command. When modifying parameters, press this key to exit parameter adjustment.
Reset Key – Press the reset key at any time to return the instrument to its initial state.
Select/Print Key-Cursor reverse selection, numerical value selection, or for printing measurement data.
7. RS232: Used for data communication between the instrument and a PC or for software upgrades.
8. USB: Used to connect a USB flash drive for data storage.
9. Printer: Thermal printer, used for quickly printing various measurement data.
