Lightning Impulse Test Category

Qilida Solutions

Lightning Impulse Test Category

Advanced high-voltage testing solutions ensuring electrical equipment reliability under extreme lightning conditions. IEC 60060-1 compliant systems for comprehensive insulation validation.

Enquiry Today

Advanced Testing Solutions

Marx Generator Technology

Advanced Marx circuit design generates standard lightning impulses (1.2/50 μs) and switching impulses (250/2500 μs) with exceptional precision and repeatability.

Precision Measurement

16-bit resolution at 250 MS/s sampling provides unmatched measurement accuracy. Built-in voltage dividers meet IEC 60060-2 requirements for traceable measurements.

Automated Testing

Comprehensive automation reduces operator error and increases throughput. Programmable test sequences handle complex multi-phase testing protocols efficiently.

Safety Systems

Multi-layer safety interlocks, emergency discharge circuits, and fail-safe operations protect personnel and equipment during high-energy testing operations.

Digital Control

Intuitive touchscreen interface with real-time waveform display, parameter calculation, and comprehensive test reporting capabilities.

Modular Design

Scalable systems from 100kV to 6000kV configurations. Upgrade capability allows expansion as testing requirements grow.

Solving Critical Testing Challenges

Problem Predicament

Accuracy of Test Results: Ensuring the test replicates real-world lightning conditions accurately.

Equipment Limitations: High-voltage test equipment may not always meet the required standards for generating precise impulse waves.

Environmental Factors: External conditions, such as temperature and humidity, can affect test outcomes.

Safety Concerns: Handling high-voltage equipment poses significant risks to personnel and infrastructure.

Solutions

Advanced Testing Equipment: Invest in modern impulse generators and measurement systems for accurate and reliable waveforms.

Controlled Testing Environment: Conduct tests in a controlled environment to minimize the impact of external factors.

Safety Protocols: Implement strict safety measures, including remote monitoring and automated systems, to protect personnel.

Simulation Software: Use advanced simulation tools to predict equipment behavior under lightning conditions before physical testing.

Applications of Lightning Impulse Test Category

Our lightning impulse test solutions serve critical industries worldwide

Power Transformers

Full and chopped lightning impulse testing for distribution and power transformers, ensuring insulation integrity under surge conditions.

Surge Arresters

Current impulse testing with 1/20 μs, 4/10 μs, 8/20 μs, and 10/350 μs waveforms for arrester certification and quality control.

Switchgear Testing

High-voltage switchgear and circuit breaker testing to validate insulation coordination and switching surge withstand capability.

Building Protection

Lightning protection system testing for buildings, structures, and critical infrastructure installations.

Research & Development

University laboratories and research centers for insulation material development and high-voltage phenomenon studies.

Industrial Equipment

Motors, generators, cables, and industrial electrical equipment testing for lightning and switching surge immunity.

What Our Clients Say

The precision and reliability of ElectroGuard Pro's lightning impulse systems have transformed our transformer testing facility. The automated waveform analysis saves us hours per test while ensuring complete IEC compliance.

Dr. Klaus Weber

Chief Engineer, Siemens Energy

Outstanding technical support and system performance. The modular design allowed us to start with a basic configuration and expand as our testing requirements grew. ROI was achieved within 18 months.

Maria Rodriguez

QC Manager, ABB Transformers

Exceptional accuracy and repeatability. The k-factor analysis capability was essential for our UHV transformer development program. The system handles complex waveforms flawlessly.

Robert Smith

Lead Engineer, GE Grid Solutions

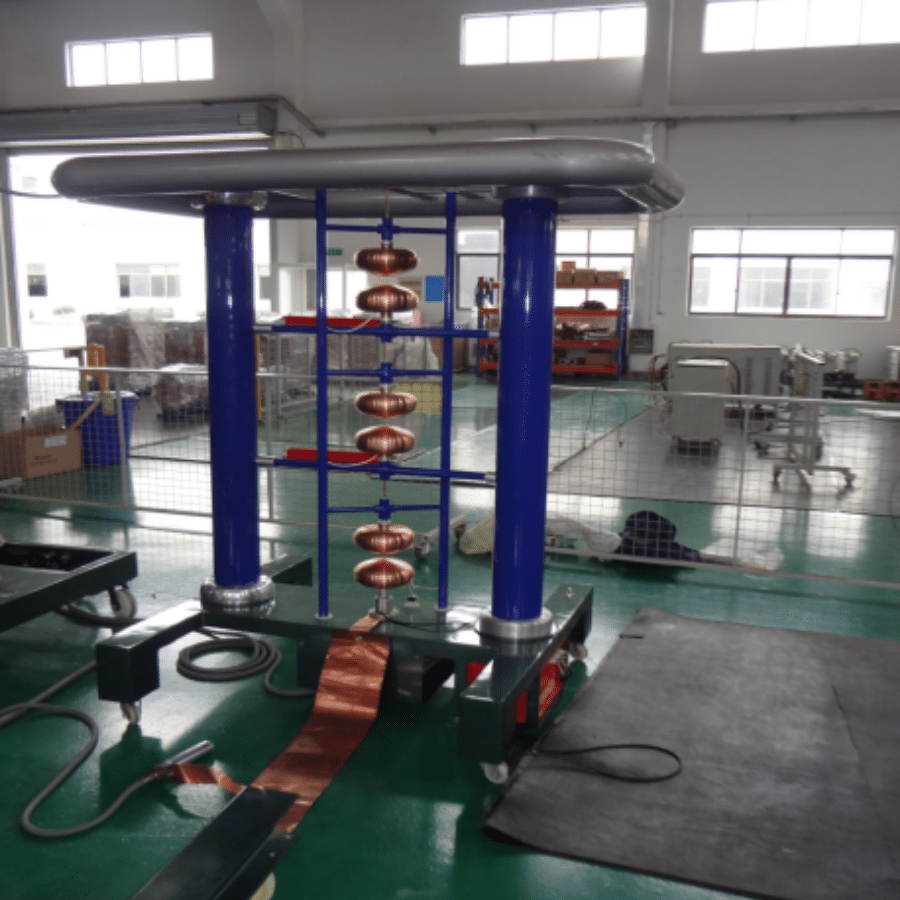

Why Choose Qilida

Industry Leadership: Over 25 years of experience in high-voltage testing technology. Trusted by leading manufacturers and testing laboratories worldwide.

Innovation Excellence: Continuous R&D investment ensures cutting-edge technology. Our digital impulse analyzers set new industry standards for accuracy and safety.

Complete Solutions: From generators to analyzers, we provide end-to-end testing solutions. Single-source responsibility for your entire impulse testing setup.

Precision Engineering: ±1% measurement accuracy with IEC 60060-2 compliance. Fiber-optic isolation ensures operator safety and eliminates ground loops.

Global Support: 24/7 technical support with local service centers worldwide. Comprehensive training programs and on-site commissioning services.
